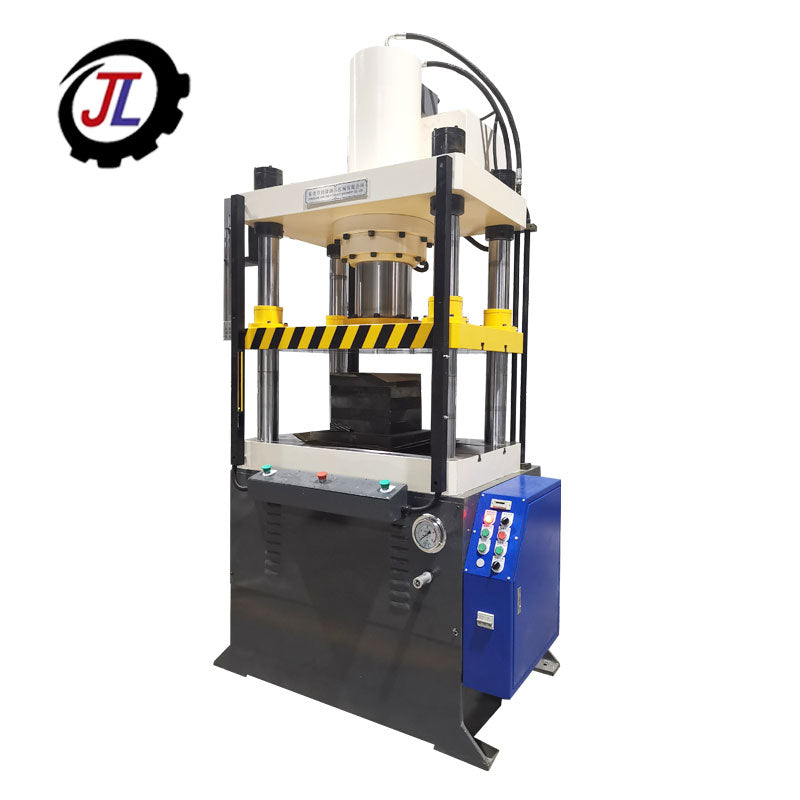

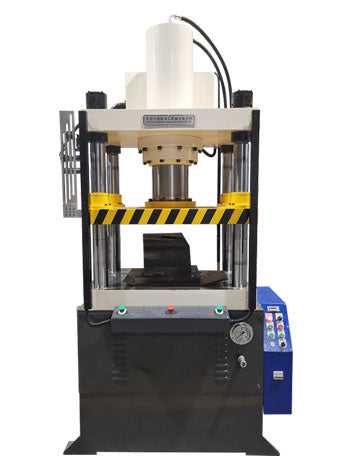

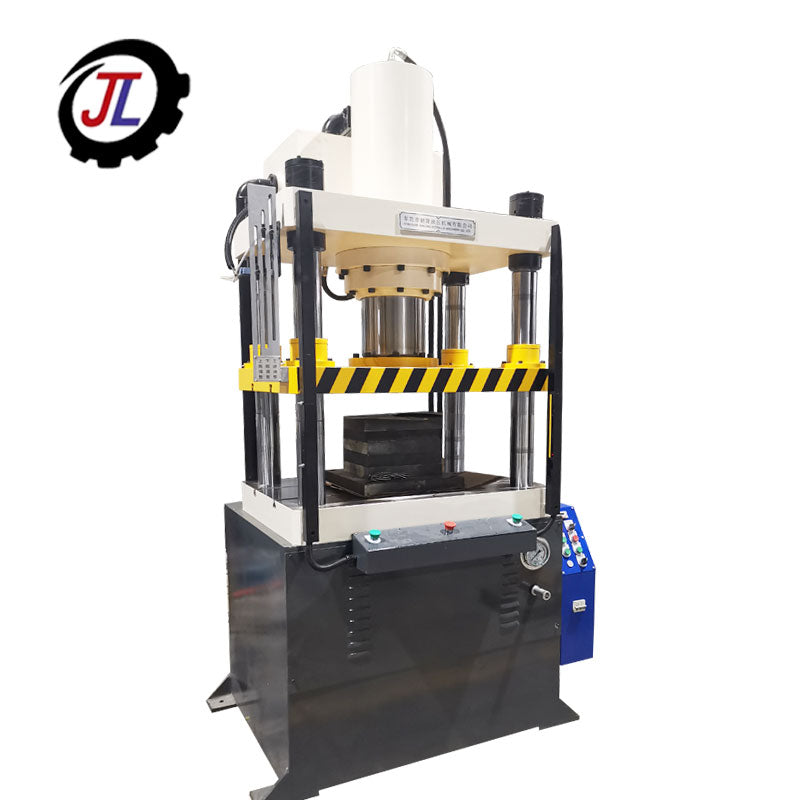

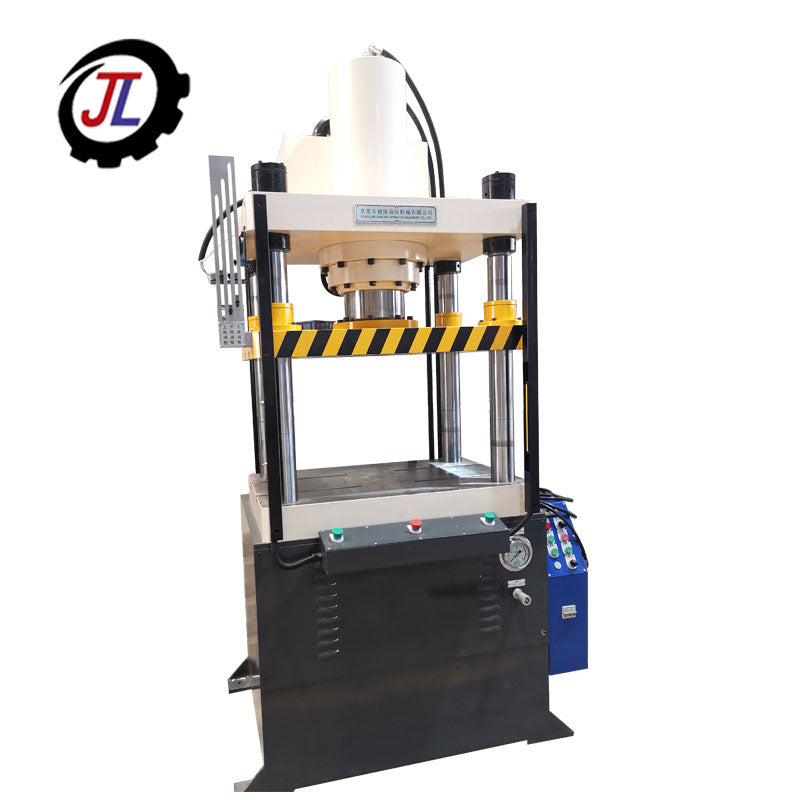

100ton four-column single-acting hydraulic press

From 1 ton to 100 tons, the automatic mold adjustment technology can be selected, and the bidirectional convection valve is adopted for regulation. The intermediate control program is adopted to adjust the required height of the cylinder, which is less likely to damage the mold. It adopts a four-column structure, with the movable plate parallel to the working surface. The guide sleeve ensures high vertical accuracy of the downward pressure. The oil cylinder is adjustable. The moving mechanism of the upper pressure plate is composed of components such as the oil cylinder, linear bearings, 4-column guide rods, molds, pneumatic clamping devices for molds, and vacuum suction cups.

Characteristics
This series of hydraulic machine tools uses hydraulic power ranging from 1 to 14 mpa as the power source and is connected to an external three-phase AC380V 50HZ or three-phase AC 220V 60HZ AC power supply. The total power consumption does not exceed 8.5KW.
2. This series of equipment transfers energy through liquid as the medium, and the pressure-holding time can be freely adjusted within 0 to 24 hours.
3. The noise of the equipment in standby mode is much lower than that of similar products.
4. The upper and lower working surfaces are equipped with heat treatment heating plates, and the mold is fixed with a general T-shaped groove, which is controlled by an intelligent thermostat PID. High precision, with temperature error within ±1°C;
5. It adopts a four-column and three-plate structure. The vertical accuracy of the movable plate is controlled by four guide sleeves, and the parallel accuracy of any point between the lower working surface and the upper working surface is less than 0.08MM.
6. It adopts an adjustable positioning cylinder, with high positioning accuracy at the bottom dead center and a repeatability accuracy of less than 0.01mm, ensuring the impression depth.
7. It has an automatic counting function and is available in both manual and semi-automatic control modes. The manual, press-in upper die can be stopped within any stroke range. It is equipped with an emergency recovery button and can also be fitted with an infrared hand guard.
8. The descent speed of the main shaft is 88 mm /S;
9. The pressure, compression stroke, holding time and closing height can be adjusted by the customer for convenience.
10. The bottom of the hydraulic system is equipped with an internal oil tank, presenting a clean and stable appearance. There are casters and foot cups under the workbench, which can be moved easily. The weight of this series of models does not exceed 450 kilograms. The production capacity range of this series of hydraulic machinery is 3 to 50tf. Self-selected; (1tf=1000kgf=9.8KN), and it can also be customized according to customer requirements. From 1 ton to 100 tons, the automatic mold adjustment technology can be selected, and the bidirectional convection valve is adopted for regulation. The intermediate control program is adopted to adjust the required height of the cylinder, which is less likely to damage the mold. It adopts a four-column structure, with the movable plate parallel to the working surface. The guide sleeve ensures high vertical accuracy of the downward pressure. The oil cylinder is adjustable. The moving mechanism of the upper pressure plate is composed of components such as the oil cylinder, linear bearings, 4-column guide rods, molds, pneumatic clamping devices for molds, and vacuum suction cups.
